| Dimensions: | Max OD Is 5000mm, | Machining: | Rough Machining Or Finish Maching |
|---|---|---|---|
| MaterialAlloy Steel 42CrMo4: | P355GH | Standard: | EN10028 |
| Weight: | 20Kg-15000Kg | Type: | Forged Steel Ring |
| Highlight: | rolled rings manufacturers,ring of forging |
||

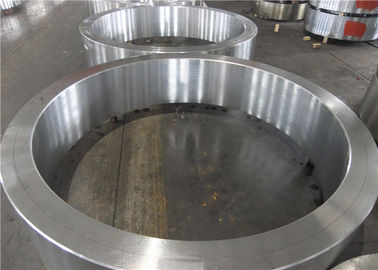

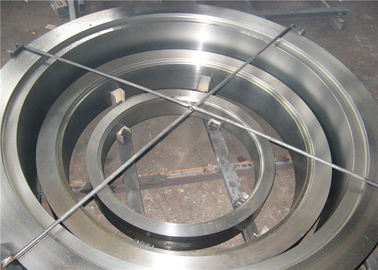

OD 5000mm P355GH EN10028 Metal Forgings For Heavy Duty Forging Parts
About US
We are the manufacturer specialized in machining heavy duty forging parts for many years.Our products, such as drive shaft, Forging Hollow Shaft, Shaft Sleeve, Eccentric shaft, Forging rod, Large bolt, Heavy Duty Hydraulic Cylinder, are widely used in coiled material, petroleum, metallurgy, mine, machinery and transportation industry. etc.
Element:
| C:0.1~0.22% | Si≤0.6% |
| Mn:1.10~1.7% | P≤0.025% |
| S≤0.10% | N≤0.012% |
| Cr≤0.3% | Cu≤0.3% |
| Mo≤0.08% | Nb≤0.04% |
| Ni≤0.3% | Ti≤0.03% |
| V≤0.02% |
Heat Treatment::Normalizing
Largest OD:5000mm
Largest Weight:15000kg
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Test instruments:
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
