Product Details:
Payment & Shipping Terms:
|
| Application: | Pressure Vessel,Ball Valve,Tube Etc | Name: | Alloy Steel Forgings Pipe |
|---|---|---|---|
| Heat Treatment: | Annealing,Normalizing And Tempering | Machining: | Rough Machining Or Finish Maching |
| Weight: | 20Kg-15000Kg | MaterialAlloy Steel 42CrMo4: | SA335P22 |
| Highlight: | metal forgings,forged steel ring |
||

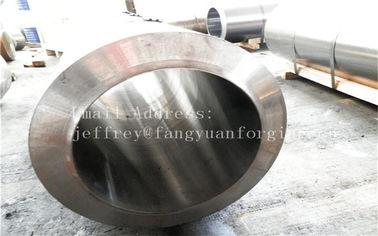

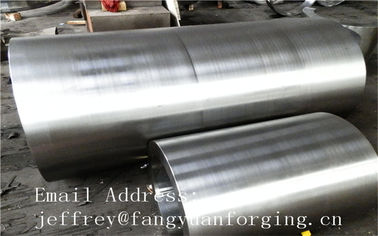

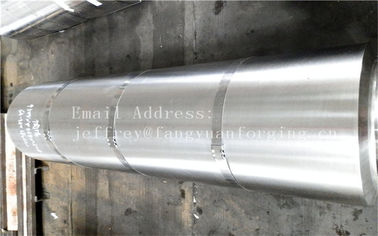

ASTM ASME SA355 P22 Hot Forged Ring Forged Disc Flange Heat treatment And Proof Machined
Parameters
|
PRODUCT
|
ASTM ASME SA355 P11
|
||
|
Material
|
ST52, ST35, ST42, ST45, X42, X46, X52, X56, X60, X65, X70
|
||
|
Standard
|
API SPEC 5L, ASTM A 53M, ASTM A 106M,
|
||
|
Surface
|
Black paint, varnish, oil, galvanized
|
||
|
Pipe Length
|
Fixed length, random length or as required
|
||
|
Pipe Ends
|
Plain Ends, Beveled Ends
|
||
|
End Protector
|
1. Plastic caps (small OD) 2. Iron protector (large OD)
|
||
|
Application
|
Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes
|
||
|
Test
|
Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, Hydro static Test, X-ray Test.
|
||
|
Productivity
|
20000 tons per month
|
||
|
Min Order
|
10 ton
|
||
|
Remark
|
Special design available according to requirement
|
||
Chemical elements:
| C:0.05~0.15% | Si≤:0.5% | Mn:0.3~0.6% | S≤0.025% | P≤0.025% | Cr:1.9~2.6% | Mo:0.87~1.13% |
Heat Treatment:
1.Annealing
2.Normalizing&Tempering
Brief introduce:
Largest OD:5000mm
Largest Weight:15000kg
Surface Finish 3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Contact Person: Mr. fangyuan
