Product Details:
Payment & Shipping Terms:
|
| Heat Treatment: | Normalizing,Quenching And Tempering | Weight: | 50Kg-15000Kg |
|---|---|---|---|
| Dimensions: | Max OD Is 5000mm, | Machining: | Rough Machining Or Finish Maching |
| MaterialAlloy Steel 42CrMo4: | Carbon Steel SA266 | Application: | Pressure Vessel,Boiler,Tube Etc |
| Highlight: | forged alloy steel,forged steel ring |
||

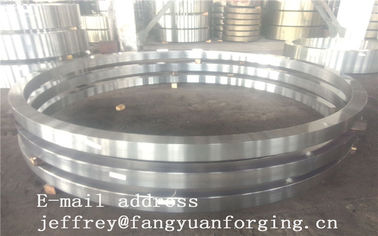

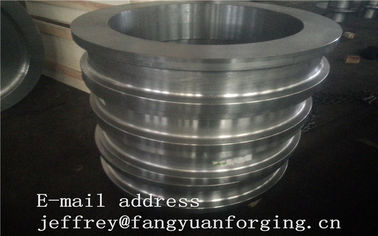

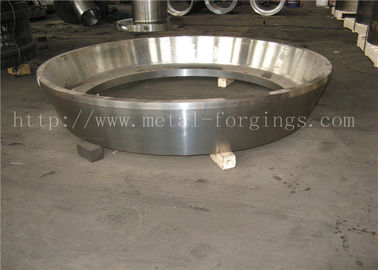

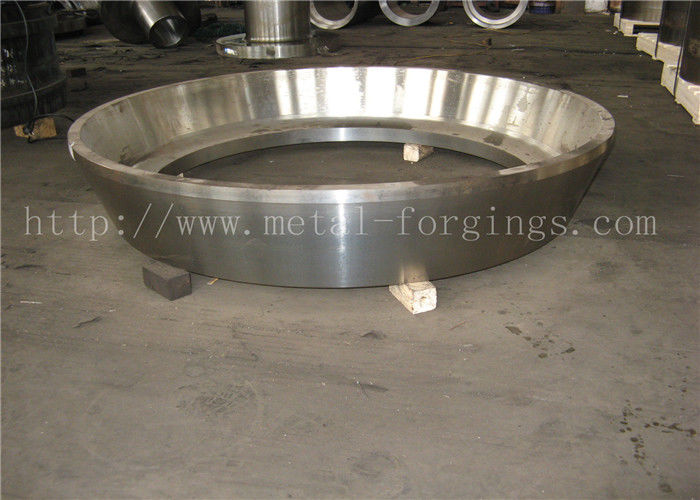

Carbon Steel SA266 Steel Alloy Forgings / Steel Ring Max OD 5000mm
Forged Steel Ring Application
Gear/Transmission
Metallurgy Field
Oi1&Gas Field
Ship-buil ding
Wind Energy
Chemi stry/PRV&Pipe
Mining
Sugar PI ant Machinery
Construction
Power Generation/Motors
Others
ASTM/ASME Standard :ASTM SA-266/SA-266M
| Elements | composition % | ||
| 1Class and 2 Class | 3 Class | 4Class | |
| C,≤ | 0.3 | 0.35 | 0.30 |
| Mn | 0.4~1.05 | 0.8~1.35 | 0.80~1.35 |
| P,≤ | 0.025 | 0.025 | 0.025 |
| S,≤ | 0.025 | 0.025 | 0.025 |
| Si | 0.15~0.35 | 0.15~0.35 | 0.15~0.35 |
Largest OD:5000mm
Largest Weight:15000kg
Surface Finish 3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Company Introduction:
| Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association. As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could provide you good quality forgings with competitive pirces. The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test. The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely. The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon. |
Contact Person: Mr. fangyuan
