Product Details:
Payment & Shipping Terms:
|
| Machining: | Rough Machining Or Finish Maching | Application: | Mechanical Manufacture,Tube Etc |
|---|---|---|---|
| Weight: | 600Kg-15000Kg | Heat Treatment: | Normalizing,Quenching And Tempering |
| Dimensions: | Max OD Is 5000mm, | MaterialAlloy Steel 42CrMo4: | Carbon Steel |
| Highlight: | forged carbon steel flanges,carbon steel forged flanges |
||

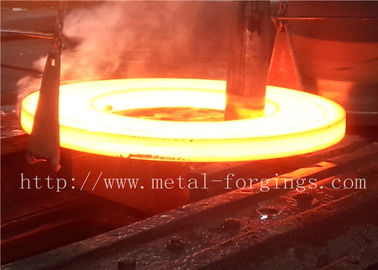

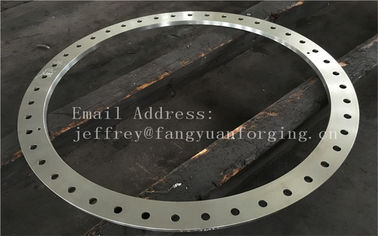

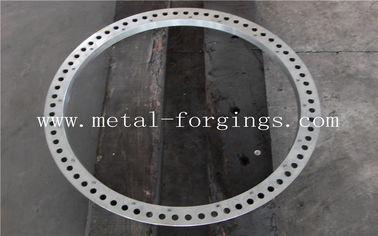

600Kg-15000Kg Carbon Steel Flange / Large Forged Rings For Industrial ST52 ST60-2
Heat Treatment:
Quenching+ Tempering
NorMalizing
Or As Required.
Largest OD:5000mm
Largest Weight:15000kg
Surface Finish 3.2um Ra Or As Required.
Forging Reduction Min:3 Or As Required
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Company Introduction:
|
As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could provide you good quality forgings with competitive pirces.
The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely. |
Contact Person: Mr. fangyuan
