| Heat Treatment: | Solution | Application: | Pressure Vessel,Ball Valve,Tube Etc |
|---|---|---|---|
| Standard: | ASME / ASTM-2013 | Material: | F304 Stainless Steel |
| Weight: | 20Kg-10000Kg | ||
| High Light: | stainless steel pipe flange,forged stainless flanges |
||

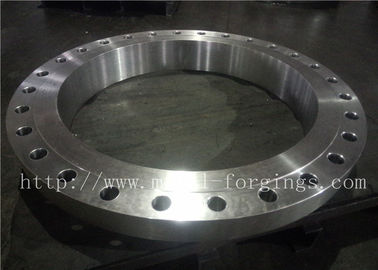

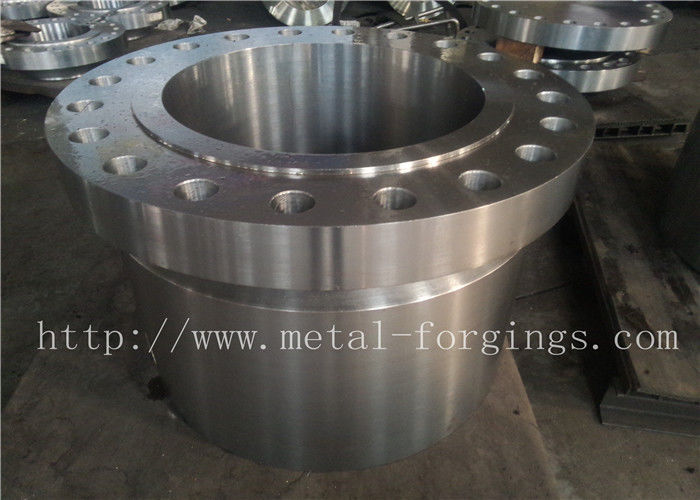

PED Certificates Stainless Steel Flange / Stainless Steel Pipe Flange
Largest OD:2500mm
Largest Weight:15000kg
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
Rought machining or Finis Machining
stainless steel pipe flange
| 1. Standard:(forged flange) | ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820 |
| 2. Type: | Plate,Slip-on,Welding Neck.Thread,Socket weld,Blind |
| 3. Size: | 1/2-78 inch (DN15-DN2000) |
| 4. Material: | Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8 |
| Stainless Steel: F304 F304L F316 F316L 316Ti | |
| 5. Surface Treatment | Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc, |
| Hot dipped Galvanized. | |
| 6. Inspection: | factory in-house self check or Third Party inspection |
| 7. Packing: | No Fumigate or Fumigate Plywood/Wood Pallet or Case |
| 8. Payment Term: | L/C at sight or 30days OR T/T |
Mechanical Properties:
| Item | Tensile Strength | Yield Strength | Elongation Rate | Reduction Of Area | Hardness |
| F304 | ≥515 Mpa | ≥205 Mpa | ≥30% | ≥50% | ... |
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Test instruments:
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Company Introduction:
As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.
The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.
The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
