Product Details:
Payment & Shipping Terms:
|
| Heat Treatment: | Normalized | Application: | Steam Turbine Guider Ring |
|---|---|---|---|
| Dimensions: | Max OD Is 5000mm, | Machining: | Rough Machining Or Finish Maching |
| Material: | S235JRG2 1.0038 | Weight: | 30Kg-10000Kg |
| Highlight: | stainless steel sleeve,metal sleeve |
||

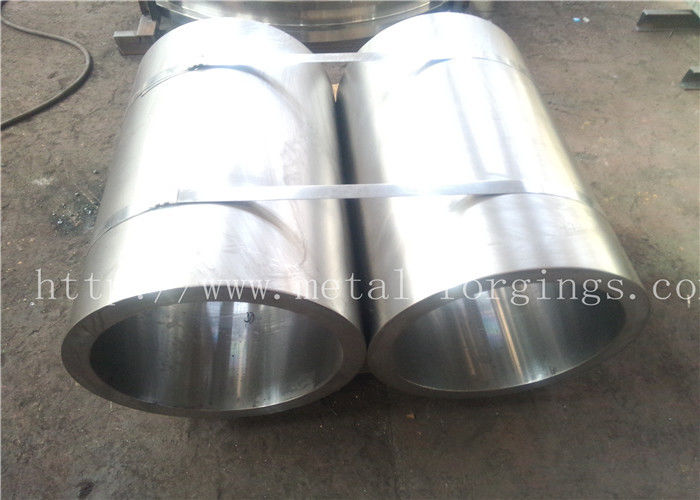

Normalized Forged Pipe Metal Sleeve For Steam Turbine Guider Ring
Forging:Ring,Sleeve,Round plate,Square plate.
| Product Name | ASTM A564 SUS630 type stainless steel 17-4 ph forgings ring |
| Steel type | AISI 630, ASTM 630, ASTM 17-4PH, UNS S17400 |
| JIS SUS630 | |
| Din X5CrNiCU17-04 | |
| EN 1.4542 | |
| Standard | ASTM A564,AMS 5643,ASTM A705,ASTM-A484 |
| Size | Size 1/4" ~ 86" out diameter 13.7mm~2200mm/Customized |
| Finishing | Solution treated + age hardening heat treated ( H900, H1150, H1150D, H1150M, H1075, H1025 etc ) |
| Feature of 630 | High Tensile strength, high hardness after heat treated. |
| Mechanical property |
T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| Application |
construction field, ships building industry, petroleum,chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger,machinery and hardware fields.Stainless steel plate can be made according to the customers requirements. |

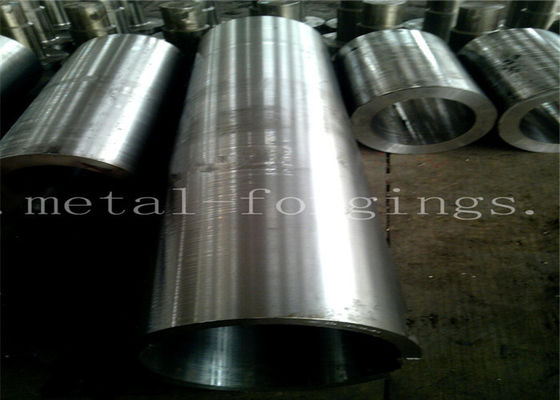

Forged Sleeve Forged Pipe S235JRG2 1.0038 EN10250-2:1999 Forged Sleeve
Short Introduce:| Surface Finish:3.2um Ra Or As Required. Forging Reduction Min:3 Or As Required Rought machining or Finis Machining |
S235JRG2 1.0038 Chemical Composition:| C | Si | Mn | P | S | Cr | Mo | Ni | Cr+Mo+Ni | Al |
| ≤0.20 | ≤0.55 | ≤1.40 | ≤0.045 | ≤0.045 | ≤0.30 | ≤0.080 | ≤0.30 | ≤0.48 | ≥0.020 |
Heat Treatment:Mechanical Properties:| Thichness mm |
Yield strength |
Tensile strength |
Elongation |
Impact Valve |
| -100 | 215 | 340 | 24/- | 35/- |
| 100-250 | 175 | 340 | 23/17 | 30/20 |
| 250-500 | 165 | 340 | 23/17 | 27/15 |
Certfiticates List:| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
