Product Details:
Payment & Shipping Terms:
|
| Application: | Gears | Weight: | 50Kg-15000Kg |
|---|---|---|---|
| Machining: | Rough Machining | Dimensions: | Max OD Is 1000m, |
| Material: | Carbon Steel | Heat Treatment: | Normalizing Or Q+T |
| Highlight: | forge disc,round sheet metal discs |
||

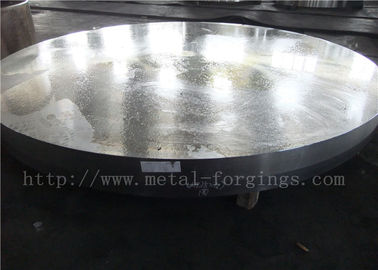

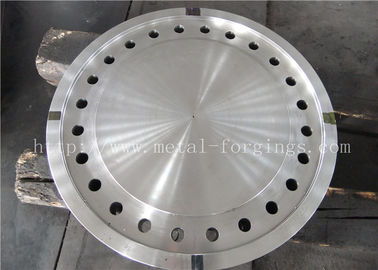

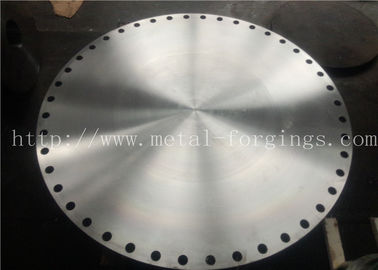

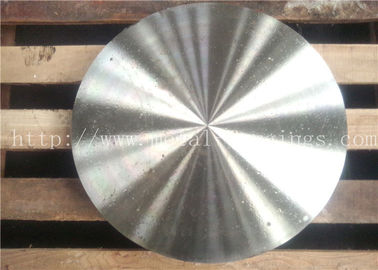

Gears Carbon Steel Forged Disc DIN 1.0503 C45 IC45 080A47 CC45 SAE1045
1. Main products: Custom Open Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.
2. Materials: Carbon steel, Alloy steel
3.Supplying range: Shafts, Sleeves, Rings, Cylinders, Blocks, Modules etc
4. Process: Forging/Casting – Normalizing & Tempering – Proof Machining- Quenching & Tempering – Finish Machining
We can offer you in various process conditions.
Chemical Elements
| C | Si | Mn | P | S | Cr | Mo | Ni | Cr+Mo+Ni |
| 0.42~0.50% | ≤0.4% | 0.5~0.8% | ≤0.045% | ≤0.045% | ≤0.4% | ≤0.1% | ≤0.4% | ≤0.63% |
The main manufacturing equipments
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Contact Person: Mr. fangyuan
